How Accurate is Thermal Imaging Cameras?
How Accurate is Thermographic Measurement?
“If thermocouples are more accurate and cheaper, why not just use them instead of expensive thermal cameras?”

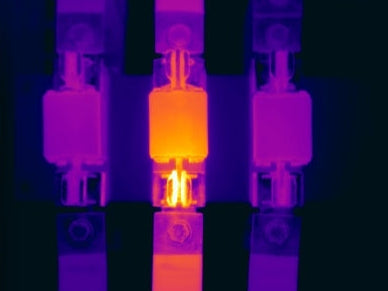

In the world of predictive maintenance, reliability engineering, and asset management, accuracy is everything. Whether you're inspecting a high-voltage electrical panel, monitoring critical rotating equipment, or scanning a transformer, the effectiveness of thermography lies not just in detecting temperature differences, but in doing so accurately.
How Accurate Are Thermal Cameras?
Thermal cameras today are sophisticated instruments capable of delivering highly accurate temperature readings—often within ±2°C or 2% of the reading (whichever is greater). However, achieving and maintaining that accuracy depends on a combination of technical factors and human expertise.
Let’s break it down:
Key Factors That Affect Thermographic Accuracy
1. Training, Skills, and Experience of the Thermographer
Even the best thermal camera is only as effective as the person using it. Certified thermographers understand how to correctly interpret thermograms, compensate for environmental effects, and set parameters like emissivity and reflected temperatures. Misinterpretation can lead to false positives—or worse, missed failures.
2. Calibration of the Camera
Thermal cameras must be regularly calibrated against a known reference (typically a blackbody source) to maintain accuracy over time. Calibration ensures the sensor's readings match real-world temperatures.
3. Emissivity Settings
Emissivity is a material’s ability to emit infrared energy. Different surfaces (e.g., shiny metal vs. painted surfaces) emit heat differently. Setting the wrong emissivity value in the camera can result in significant temperature errors.
4. Distance to Target and IR Resolution
Distance affects accuracy. If the camera is too far, it may "see" a mix of temperatures (due to spatial averaging). High-resolution cameras with a narrow Field of View (FOV) are better suited for distant or small targets.
5. Environmental Conditions
Ambient temperature, wind, humidity, and reflections can all influence readings. For example, a breeze can cool a component and mask a hot spot, while sunlight or a nearby heat source can cause misleading reflections.
Thermal Imaging vs. Thermocouples – Which is More Accurate?
This is a common question: “If thermocouples are more accurate and cheaper, why not just use them instead of expensive thermal imaging cameras?”
Thermocouples
- Very high point accuracy, often within ±0.5°C
- Ideal for contact-based temperature measurement
- Require physical contact with the object
- Can only measure one specific point at a time
- Not suitable for high-voltage or moving parts without risk or setup complexity
Thermal Cameras
- Provide non-contact, real-time surface temperature data
- Measure thousands of points in a single image (heat map)
- Detect thermal patterns, hot spots, and anomalies over large areas
- Can be used safely from a distance, even on live electrical components
- Accuracy is slightly lower than thermocouples—but sufficient for most diagnostic applications
So, Why Use Thermal Imaging?
Because thermography offers something that thermocouples cannot:
- Non-Contact,
- Speed,
- Safety,
- Insight across entire systems, and
- In Real Time.
While thermocouples are better suited for process control or scientific experiments where high-precision point measurement is needed, thermal imaging excels in inspection, diagnostics, and predictive maintenance, where fast, safe, and wide-area temperature analysis is required.
Conclusion
Thermographic measurement is accurate—but only when used correctly. It is not about replacing thermocouples, but about choosing the right tool for the application. With the right camera, proper settings, and a trained thermographer, thermal imaging provides a powerful, safe, and efficient way to maintain asset health and prevent costly failures.
