Thermography vs. Vibration Analysis: Which Delivers Greater Value?
Abstract
Infrared thermography has gained popularity in mining and heavy industry as a condition monitoring technique, often promoted as being cost-effective, easy to use, and versatile across mechanical, electrical, and structural applications. A mining-site reliability engineer recently argued that thermal imaging is preferable to vibration analysis or other predictive maintenance technologies, citing these benefits. While thermography indeed offers unique advantages, reliance on it as a stand-alone diagnostic tool is problematic. This article evaluates the validity of such claims, explores the benefits and limitations of thermography, contrasts it with vibration analysis, and concludes with recommendations for integrating these technologies into a comprehensive reliability strategy.
1. Introduction
Mining operations are highly asset-intensive, with equipment operating under severe duty cycles and environmental conditions. Reliability engineers play a critical role in ensuring asset availability and preventing unplanned downtime. Condition monitoring technologies such as vibration analysis, thermography, ultrasonic testing, and oil analysis, are all central to predictive maintenance strategies (Mobley, 2002).
Among these, infrared thermography (IRT) has seen widespread adoption. Modern thermal cameras provide high-resolution imagery at relatively low cost, enabling quick identification of hot spots in electrical and mechanical systems (Usamentiaga et al., 2014). Its intuitive, non-contact nature makes it attractive to engineers and maintenance personnel.
However, the question remains: Can thermography serve as the primary or exclusive tool for condition monitoring?
2. The Case for Thermography
The preference for thermography expressed by the mining engineer is not without merit. Its advantages include:
- Lower Cost of Entry: A portable thermal camera is significantly less expensive than setting up online vibration monitoring systems or comprehensive oil labs.
- Ease of Training and Use: Operators can identify obvious anomalies with minimal training, and the visual output is straightforward to interpret.
- Versatility: IRT can be applied across multiple domains—electrical switchgear, bearings, conveyor systems, refractory linings, and process monitoring.
- Non-Contact Safety: Measurements are taken at a distance, reducing operator exposure to live equipment or rotating components.
These attributes make thermography particularly useful as a screening tool for broad asset populations.
3. Limitations of Thermography
Despite these strengths, thermography has fundamental limitations that restrict its diagnostic capability:
- Surface-Level Detection Only: IRT measures emitted radiation, providing information on surface temperature distribution. Subsurface or early-stage faults in bearings, gearboxes, or shafts may not manifest as thermal anomalies until damage is advanced (Fluke Reliability, 2020).
- Environmental Sensitivity: Ambient conditions, emissivity variations, and reflections can distort readings, leading to false positives or missed defects (Meola & Carlomagno, 2004).
- Reactive Rather than Predictive: Heat is typically a late-stage symptom of mechanical distress. Vibration analysis, by contrast, detects microscopic changes in frequency and amplitude long before friction generates heat.
- Lack of Quantitative Diagnostics: Unlike vibration spectra, which can pinpoint fault types (imbalance, misalignment, looseness, bearing defects), thermography provides qualitative rather than quantitative insights.
4. Comparative Value of Vibration Analysis
Vibration analysis (VA) remains the cornerstone of rotating machinery diagnostics. Its key advantages include:
- Early Fault Detection: VA identifies developing defects weeks or months before thermal symptoms appear.
- Diagnostic Accuracy: Spectral analysis distinguishes between fault modes, enabling targeted maintenance.
- Trendability: Historical vibration data supports prognostics and remaining useful life (RUL) estimation.
For critical assets such as crushers, mills, pumps, and conveyors, vibration analysis offers insights essential for preventing catastrophic failures.
5. Case Study Context
Consider a conveyor drive motor on a mining site:

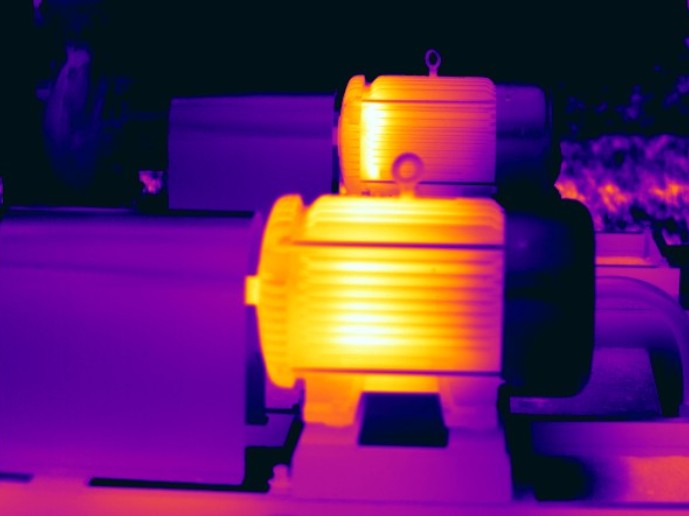

- Thermography may reveal a localized hot spot on the motor housing, suggesting possible overloading or electrical imbalance. However, the condition would likely already be in a developed stage.
- Vibration analysis, conducted earlier, could have identified bearing raceway pitting or misalignment weeks in advance, allowing for proactive replacement during scheduled downtime.
This case illustrates the complementary—not interchangeable—nature of the two technologies.
6. Recommendations for Practice
For mining engineers and reliability professionals:
- Use Thermography Strategically: Deploy IRT as a rapid, broad-spectrum inspection tool to prioritize further analysis.
- Do Not Neglect Vibration Analysis: For rotating machinery, VA is indispensable for early detection and accurate diagnosis.
- Adopt a Multi-Technology Approach: Combine IRT, VA, ultrasound, and oil analysis within an integrated predictive maintenance program.
- Invest in Training:
Ensure personnel are trained to understand both the capabilities and limitations of each technology, reducing the risk of over-reliance on thermography.
7. Conclusion
The mining engineer’s preference for thermography reflects its undeniable value: affordability, ease of use, and versatility. Yet, positioning it as superior to vibration analysis oversimplifies the complexity of machine health monitoring. Thermography is a powerful complementary tool, but not a substitute for vibration or other predictive technologies.
Final recommendation: Reliability is maximized not by choosing one technology over another, but by implementing a layered, multi-disciplinary approach where thermography plays a supporting role alongside vibration analysis and other diagnostic methods.
