Why Every Thermographer Should Carry a Hygrometer and Anemometer
In the field of infrared thermography, precision is everything. As a thermographer, your ability to interpret thermal images accurately depends on more than just the quality of your infrared camera. It hinges significantly on your understanding of environmental conditions at the time of measurement. Two often-overlooked tools that can dramatically enhance your measurement accuracy are the hygrometer and the anemometer.
Why These Tools Matter
A hygrometer measures ambient temperature and relative humidity, and an anemometer measures wind speed. These are not just meteorological instruments. They are critical diagnostic aids that should be part of every thermographer’s standard toolkit. Here’s why:
- Ambient temperature, humidity, and wind speed all influence how infrared radiation travels through the atmosphere.
- These variables directly affect how your thermal camera compensates for atmospheric transmittance — a key factor in achieving accurate temperature readings.
Without accounting for these values, especially when working over medium to long distances or in challenging environmental conditions, your temperature readings can be significantly underestimated.
Understanding Atmospheric Transmittance
What is Atmospheric Transmittance?
Atmospheric transmittance refers to the portion of infrared radiation that successfully passes through the atmosphere and reaches the camera sensor without being absorbed or scattered. It's affected by:
- Water vapor and carbon dioxide, which absorb specific IR wavelengths.
- Aerosols, dust, and other particles, which scatter the IR radiation, redirecting it away from your detector.
Why It Matters in Thermography
In practical terms, if the atmosphere absorbs or scatters even a small portion of the radiation emitted from your target, your camera may display a lower temperature than what is actually present. This can lead to incorrect diagnoses. A critical risk in industries like electrical maintenance, building efficiency inspections, or predictive maintenance where decisions rely heavily on thermal accuracy.

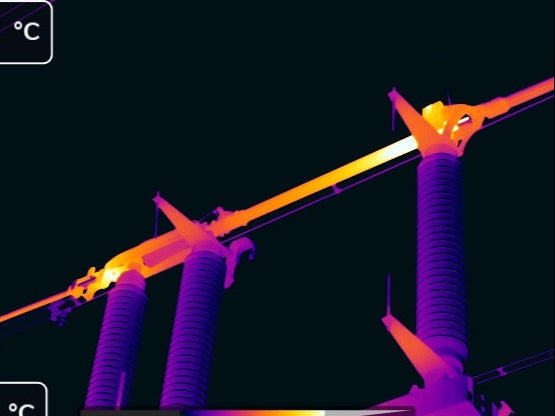

The greater the distance, the higher the humidity, and the more turbulent the wind, the more pronounced the effect of atmospheric interference becomes. This is particularly relevant when inspecting outdoor equipment, high-voltage transmission lines, or elevated mechanical structures.
Atmospheric Transmittance vs. Atmospheric Attenuation
It’s important to distinguish between two closely related terms:
- Atmospheric Transmittance is the fraction of infrared energy that passes through the atmosphere to reach your camera.
- Atmospheric Attenuation is the overall reduction (loss) of infrared energy due to both absorption and scattering by the atmosphere.
While transmittance focuses on what is preserved, attenuation highlights what is lost. For accurate diagnostics, your thermal camera must compensate for this attenuation and that compensation is only as good as the environmental data you provide.
How a Hygrometer and Anemometer Help
Hygrometer
- Measures ambient temperature and relative humidity — a key contributor to infrared absorption.
- Helps input precise data into your thermal camera or analysis software.
- Critical when working in areas of high moisture or humidity (e.g., coastal, industrial, or humid inland environments).
Anemometer
- Measures wind speed, which impacts the convection cooling of the target and can alter surface temperature readings.
- High winds may also increase scattering of IR radiation, especially in dusty or open-air environments.
Together, these instruments allow you to factor in real-time atmospheric conditions into your thermal analysis, reducing uncertainty and increasing reliability.
Conclusion:
Make These Tools a Standard Part of Your Kit
Accurate thermal imaging is not just about having a high-spec camera. It’s about having the right data. A low-cost hygrometer and compact wind meter (anemometer) are lightweight, affordable, and easy to carry, yet the benefits they bring in refining your thermographic accuracy are invaluable.
Don’t leave your diagnostic success to chance. Equip yourself with the tools that allow your camera to perform at its best — every time.
